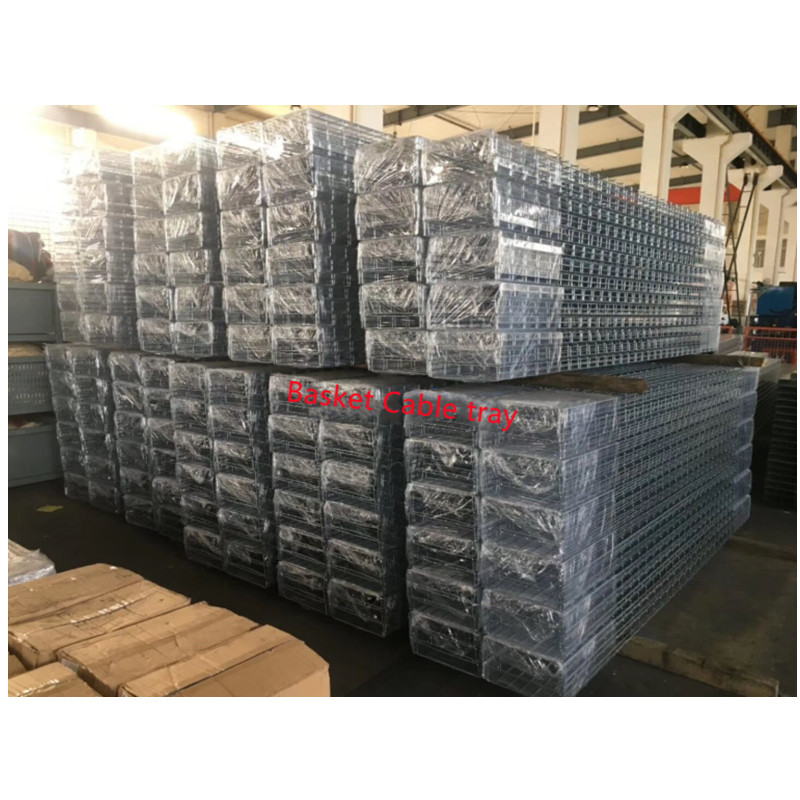

Feature of wire mesh (Basket) cable tray from width 50mm-200mm

With fully open structure, wire mesh cable trays have more advantages than other types of cable trays. They are widely used all over the world in different fields like data center, food industry, building constructions, etc.

Wire mesh cable tray is the core product among all our cable tray products. Hesheng design and manufacture cable tray and accessories obey NEMA and IEC 61537. We also accept customization for special design and fabrication of basket cable trays.

Interested in cooperating with us on basket trays? We are now exploring Hesheng Group “Cable Tray” in the global market. You will get very economical prices for both basket cable trays and accessories. Popular sizes of basket trays are normally in stock. Small order available. We are also looking for basket cable tray wholesalers, agents and distributors worldwide

Specifications.

The width of basket cable tray: 50mm-1200mm

The Height of basket cable tray: 35mm-200mm

The length of basket cable tray: 3000mm

We can send you our cable tray catalog with all accessories if necessary, if interested, kindly contact us via laddertray@163.com. we can supply all kind of cable tray.

Below is the information of standard wire mesh cable trays that we manufacture.

Material:

• Carbon Steel
• SS304L
• SS316L
• PG: pre-galvanized zinc material according to ASTM A653.
• EZ: electro zinc plated according to EN 12329-2000. Thickness average 12microns, minimum 8microns.
• HDG: hot dipped galvanized according to EN 1461-1999. Thickness above 60microns.
• PC: powder coated according to EN 10309-1999. Thickness above 50microns. Color optional.
• SS: pickled & passivated, or electrolytic polished for stainless steel material.
• DC/GT: dacromet / geomet for accessories.

Surface Finish:

Dimensions:

All our wire mesh cable trays are constructed with a 50mm x 100mm mesh configuration. The standard wire diameter we use is 5.0mm. Special diameter from 4.0 to 6.0 is available. As per the length of wire mesh cable tray, 3m is recommended. 2.9m is also widely used to fit 20ft container.
