Hesheng Group has been the one of leading suppliers of Cable Tray Systems for over 10 years.We specialise in a wide variety of Cable Tray, Cable Ladder Tray, Perforated Cable Tray, Wire Mesh Cable Tray, Basket Cable Tray, Cable Trunking, Strut Channel and Cable Accessories.Our cable trays are UL and CE certified.
Cable Tray covers
Cable Tray covers are available for all widths of tray. They should be installed where falling objects may damage cables or where vertical tray run is accessible by pedestrian or vehicular traffic.
Solid covers provide maximum mechanical protection for cables with limited heat build-up. Solid covers are available with or without flange. Flanged covers have 1⁄2in. flange.
• Fitting covers are available to complete your cable channel layout
• All fitting covers are flanged
A wide variety of covers which can be used horizontal and vertical runs to provide protection for cables installed in cable tray against environmental effects, sunlight and dirt. All covers are designed and fabricated to meet indoor and outdoor applications. Straight covers in standard are flat solid type.
Ventilated flanged covers,this design offers excellent mechanical protection while allowing heat produced by cables to dissipate.
Peaked covers offer mechanical protection and reduce pooling of liquids on the cover and the accumulation of snow or ice. Peaked covers have a 15° angle.
Fittings type

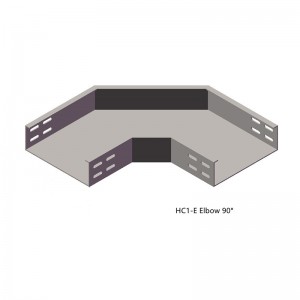

• Horizontal bends (90°, 60°, 45° and 30°)
• Horizontal tees and crosses
• Vertical bends (90°, 60°, 45° and 30°)
Cable tray fittings are used to change the size or direction of the channel tray. The most important decision to be made in fitting design concerns radius. The radius of the bend, whether horizontal or vertical, can be zero (non-radius), 12 in., 24 in. or greater on a custom basis. The selection requires a compromise with the considerations being available space, minimum bending radius of cables, ease of cable pulling and cost. The typical radius is 24 inches. Fittings are also available for 30°, 45°, 60° and 90° angles. When a standard angle will not work, adjustable elbows can be used. It may be necessary to add supports to the tray at these points.
If you are interested in cable tray or want to know more information about cable tray, kindly contact us via laddertray@163.com , we can send you cable tray catalog with complete accessories.
Making transitions from horizontal to vertical cable tray runs has never been easier or more efficient. The latest evolution in cable tray fittings, the fittings assembly was developed specifically for use in confined areas. It allows installers to transition from horizontal to vertical surfaces in less time, using significantly less space.
• Enables installation close to walls and other surfaces, eliminating need for distance
• Provides enhanced cable protection in confined spaces
• Secures cables within fitting for clean, organized cable runs
FEATURES
• Adjustable dividers
• Tops and sides can completely open
• Flat cover and 20-degree sloped cover models available
• Perforated fittings and straight sections
• Elbows contain three cover options: front, inside and outside
• Connecting hardware is included with each model
• Quarter-turn latches
supplying a wide assortment of Horizontal or vertical Cross Perforated Cable Tray. Provided cross cable tray is installed in communication sectors and various commercial units for joining corners of optical fiber cables and wires.
make splice connections for channels through the first and third round holes in each end of the splice plate for maximum strength.
