The fixation and the placement of the Cable tray

1、Placement of the cable tray

After the bracket is installed, the combined segmented cable tray will be mounted on the fixed support. The segmented cable tray placed on the bracket is connected in the same way as the 5.2.4-4.

2、Fixation of cable tray

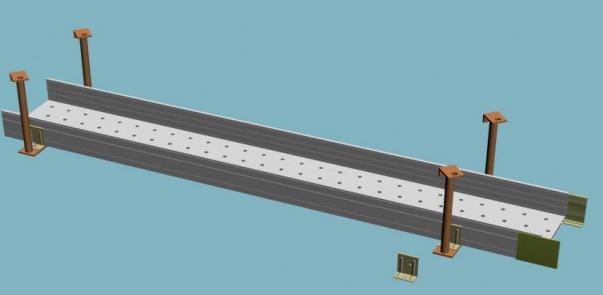

After attaching the section cable tray firmly, and then buckle with the fixed pressure plate on the swallow tail groove outside of the cable tray, and then lock with bolts and the main column, strut channel or unistrut fixed firmly, so that the cable tray does not produce horizontal and vertical displacement.As shown in Figure 5.2.6-1.

fixation of cable tray

Figure 5.2.6-1 Fixation of cable tray

3、The fixation and the placement of other bend cable tray accessories

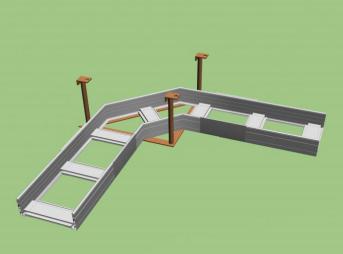

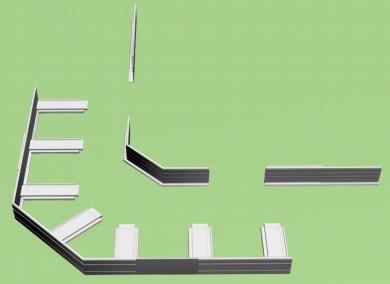

(1)Horizontal bend cable tray: connect the horizontal bend cable tray combination first, then connect the bracket into a triangle to hold the bend cable tray, and then fix the horizontal bend cable tray to the triangular bracket with the fixed pressure plate.As shown in Figure 5.2.6-2,5.2.6-3.

cable tray 1cable ladder 1

                                              Figure 5.2.6-2      Cable ladder tray                                                               Figure 5.2.6-3  ladder type cable tray

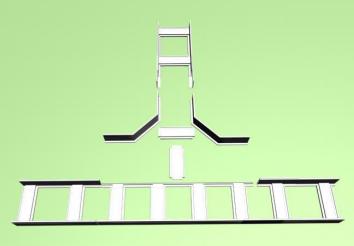

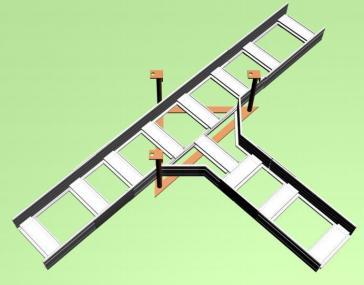

(2) Horizontal Tee Cross: first connect the horizontal Tee cross, then connect the bracket into a triangle to hold the bend cable tray, and then fix the horizontal bend cable tray to the triangle bracket with a fixed pressure plate.As shown in Figure 5.2.6-4,5.2.6-5.

ladder cable trayladder type cable tray

                               Figure 5.2.6-4     Cable ladder                                                                                Figure 5.2.6-5  ladder cable tray
