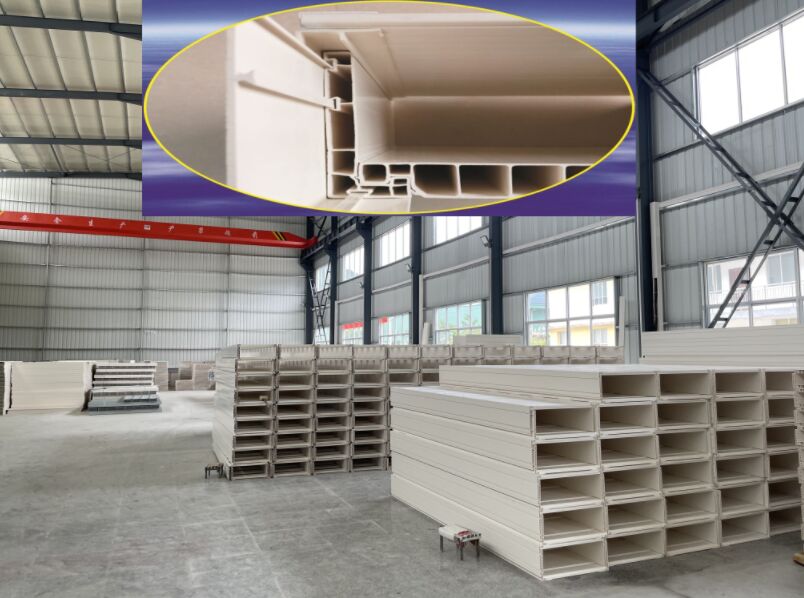

The structure of the polymer cable tray is double-walled, with reinforcing rib hollow design in the middle, that greatly improve the load capacity and reduce the weight of the cable tray itself. The polymer alloy cable tray is composed of the left and right plate, longitudinal bottom plate and cover plate.
Side rails and bottom plate are interlocked by concave groove and convex tongue (interlock by groove and tongue or interlock by male and female or connection with groove and tongue), which is solid and beautiful. The connection between the cable trays adopts the connecting plate, which is convenient and beautiful to install.
With PVC resin, ABS, calcium carbonate whiskers (short fiber) and other raw materials for mixing (hot mixed or cold mixed）extrusion molding.
Polymer cable tray is an innovated type cable trays with acid resistance, alkali resistance, salt resistance and complete corrosion resistance.
The structure of the polymer whisker cable tray is double-walls, with reinforcing rib hollow design in the middle, that greatly improve the load capacity and reduce the weight of the cable tray itself. The polymer alloy cable tray is composed of the left and right plate, longitudinal bottom plate and cover plate.
Side rails and bottom plate are interlocked by concave groove and convex tongue (interlock by groove and tongue or interlock by male and female or connection with groove and tongue), which is solid and beautiful.
Side rails and bottom plate are interlocked by groove and tongue buckle type
The connection between the cable trays adopts the connecting plate, which is convenient and beautiful to install.
Especially suitable for places with corrosion or special humidity or non-metallic requirements , such as lithium battery factory,Coastal cities or seaside places,Corrosion sites, particularly wet places(Outdoor roof, basement, etc).
1.High strength
2.Corrosion resistance（acid resistance, alkali resistance, salt resistance）
3. Flame-retardant（level for Hard to burn:B1 grade,hard combustion performance） and aging resistance
4.High-temperature resistance and creep resistance
5.No conductive（No metal (No metal-type additives), no grounding
6.No combustion drops, oxygen index 44.7%
7.Low smoke and low halogen
8.Non-toxic, odorless
9.Easy to install（No bolts connections are required)
10. Serve long life
Comparing to Galvanized Cable Tray, Stainless Cable Tray, Hot Dip Galvanized CableLadder or aluminium cable tray. Polymer cable tray is the essential and irreplaceable choice for the New Energy Industry.
Post time: Feb-15-2023
