Brief Introduction for Hesheng Cable Trunking HT3
Hesheng Cable Trunking HT3 is a kind of energy saving cable tray. Compared with the ordinary cable supporting systems, the uneven structure of the molded cable supporting system can save both materials and a certain amount of electric energy, and can save about 30% to 40% of materials.
Hesheng Cable Trunking HT3
Hesheng CableTrunking HT3 is an ideal solution for instrumentation of cable and electrical cable runs in industrial or commercial cable management applications,
Compared with the ordinary bridge, its uneven structure of the molded cable tray can save both materials and a certain amount of electric energy, and can save about 30% to 40% of materials. With the structure of one sheet molding and one reinforcement production technology. The bottom is molded to enhance the bending strength; The unique design of the side plate adds two R slots under the flange to improve the bearing capacity of the flange and effectively prevent the instability of the side plate.
surface treatment of molded cable supporting management:
·Hot dip galvanizing coating,
·Color steel coating,
·Spray coating,
·VCI bimetal coating,
·Hot dip galvanized coating
The Materia Molded cable trunking:
·Galvanized sheet material,
·stainless steel material,
·color steel material
The color code management is used to distinguish the different uses of the molded cable trunking, which can better facilitate the identification management and maintenance.
White gray -- often used in strong electricity, color code white gray --RAL9003;
Sky blue, lemon yellow, green, orange -- often used in weak electricity, color standard sky blue --RAL2010, lemon yellow --RAL1012, green --RAL6018, orange --RAL2010;
Red -- often used in fire fighting, color code red --RAL3001;
Medium gray -- often used for fire prevention, color code --RAL7012;
Light camel ash is a conventional spray color, color code light camel ash -RAL7032；
Schematic Diagram of the Cable Trunking Space Layout
Production line for Metal Cable Tray Here is processing line of cable tray and welcome to visit our plant

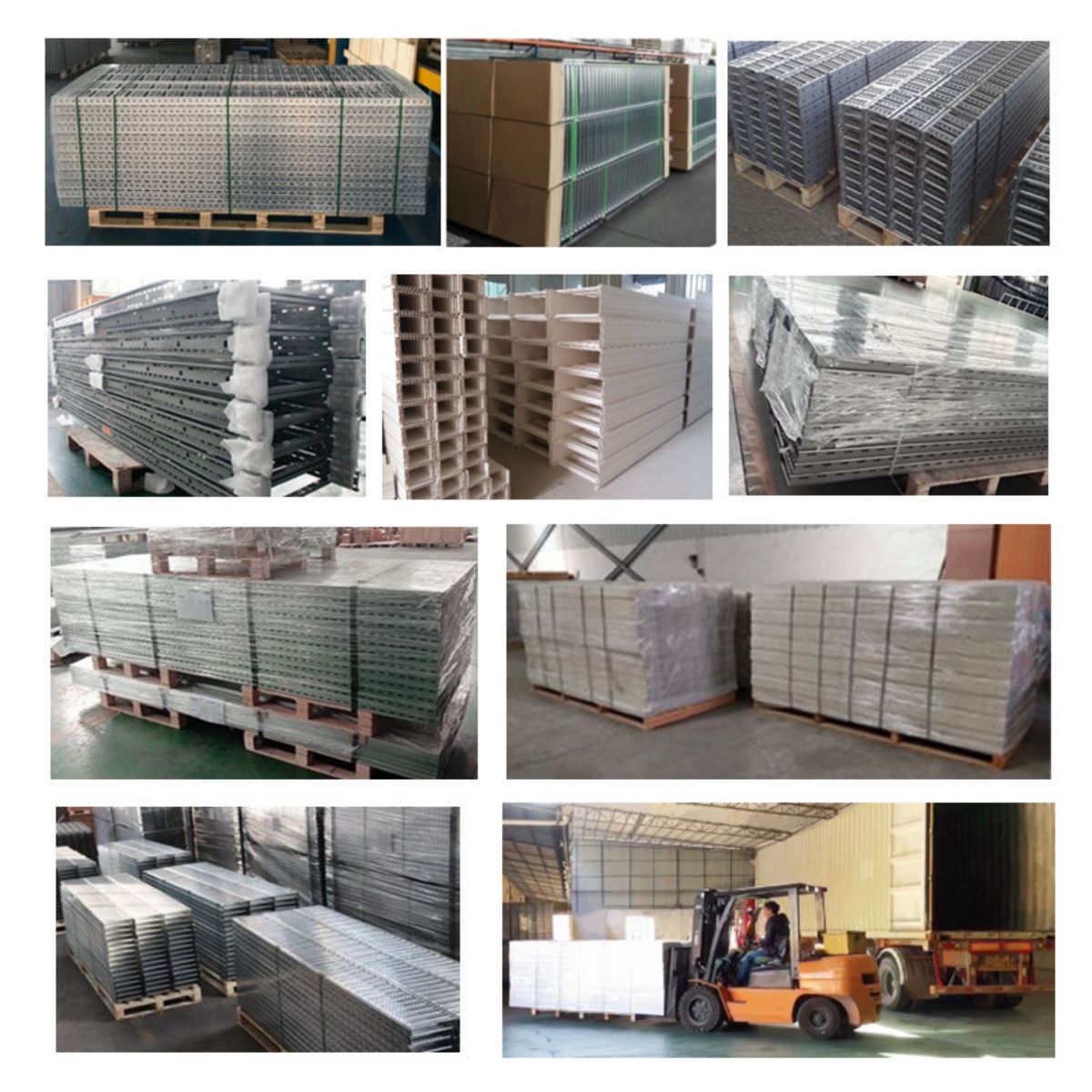

Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements

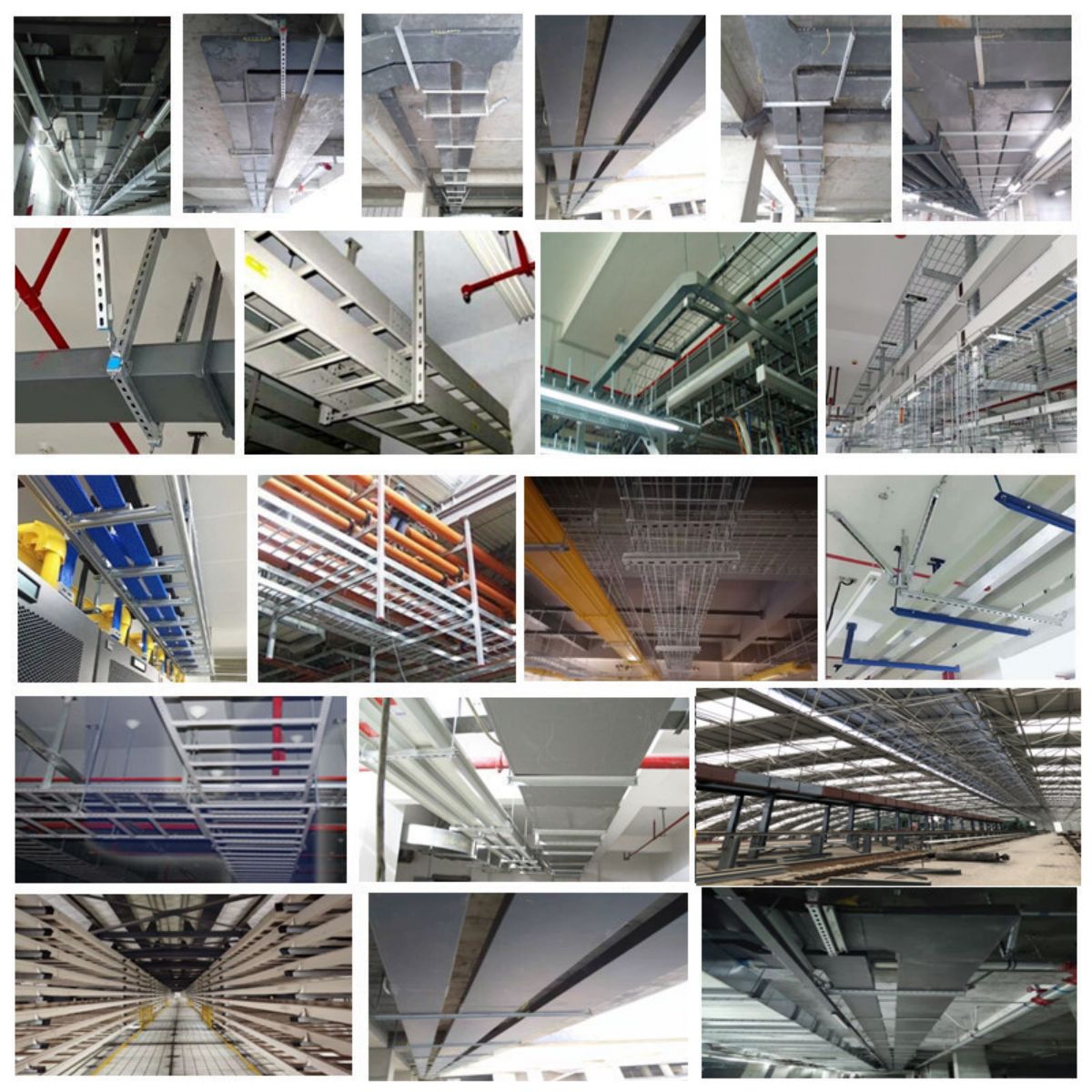

Installation case on site for Hesheng cable support system
Q: Are you a factory or a trading company?
A:We not only have our own factories but also have shares in some other enterprises.
Q:What services you can offer?
A:We are manufacturer with a range of electrical and network cable tray systems , you can enjoy the one-stop shopping service from our company.Quality and cost driving manufacturer with ISO9001,CE,NEMA,UL,SGS certificated to provide customers reliable products with most competitive price.
Q:How can you make commitment passing the test?
A:We have professional lab to do below test:
a.safe loading test
b.galvanized thickness test
c.salt spray test
d.electrical continuity
Q:What is your products advantages:
A:
a.Reduce installation costs and time
b.Easy for changing, adding and moving
c.Bright surface means good material and quality
d.Our electrical and network cabling equipment have the same quality as the international famous brand.
Q: Can you provide samples?
A: Yes ,you can get the free samples.
Q: What is your payment terms?
A: 30% T/T deposit,balance will be paid before shipment or against the copy of B/L;
Q: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 15-25days.
Q: Why do choose us?
A:
Cable Tray Official Certificates Worldwide
We has been certified by ISO9001 in China, UL in U.S.A and CE in E.U. with professional design and extremely well production techniques. These certifications are our first step into the International market.
Cable Tray Production Flow Strictly Managed
Our Factory has various types of CNC machines, high quality modeling machines, processing equipment, which provides the most powerful guarantee for high quality products.
Cable Tray Quality Traceability System Maintained
In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Our factory develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment.

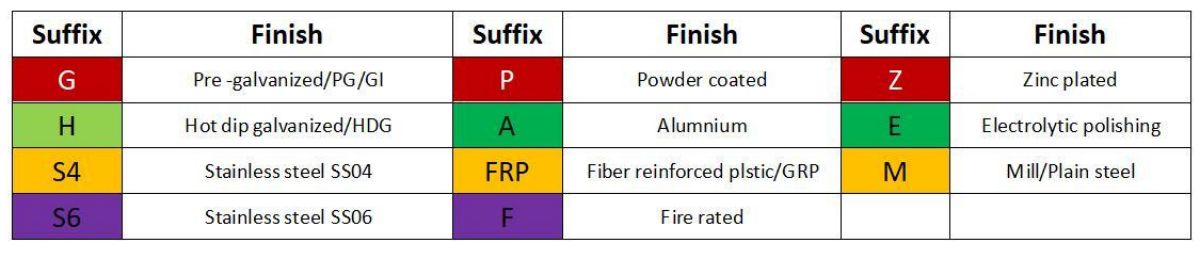

Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
