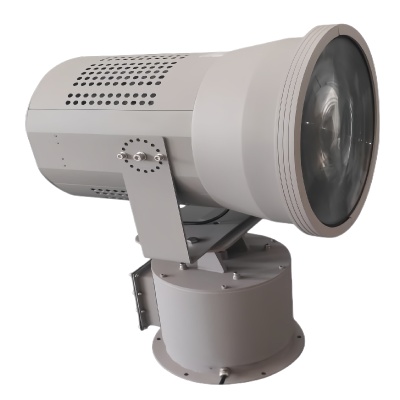

Led Searching Light
Short Description:
Advantages
Exclusive phosphor ceramic COB light source, provide high central light
intensity& directivity, guarantee the system performance;
High center illuminance, long lighting distance;
Instant on/off, interval flashing available;
Shock and corrosion resistance, suitable for offshore works;
Light decay less than 5% after 3 Years working;
Waterproof :IP67
FEATURES
Exclusive phosphor ceramic COB light source, provide high central light
intensity& directivity, guarantee the system performance;
High center illuminance, long lighting distance;
Instant on/off, interval flashing available;
Shock and corrosion resistance, suitable for offshore works;
Light decay less than 5% after 3 Years working;
Waterproof :IP67
PHOTOELECTRIC PARAMETER
Optical Materials
・Light distribution method: lens set; ・Housing: aluminum;
・Lumen maintenance(L70): 50,000 hours; ・Lens: glass&PMMA;
Electrical Remark
・Built-in power supply: Inventronics/Moso ・Operation Temperature range: -40～+55 ℃
・Input voltage: AC220~240V, power factor > 95; ・IP level: IP67
・Operation Temperature range: -40～+55°
・Remote control available;

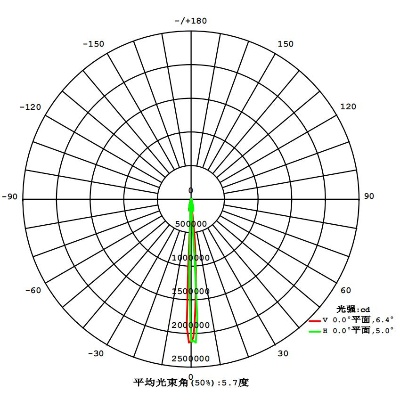

LIGHT CURVE

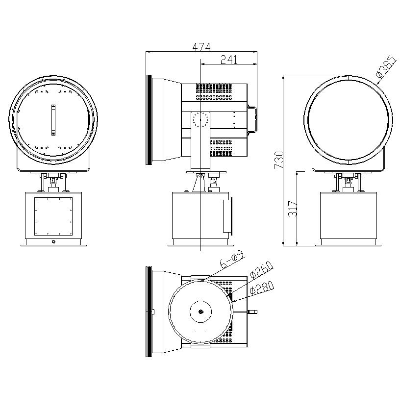

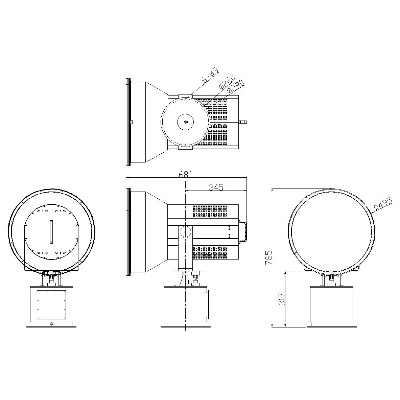

DIMENSIONS DRAWING
Model: SC300
Model:SC500
Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
