The fixation and the placement of the Cable tray

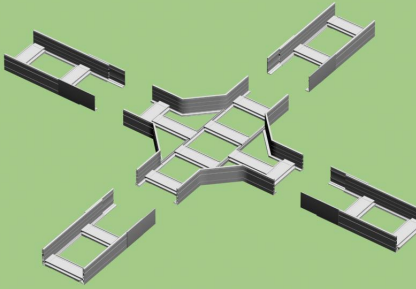

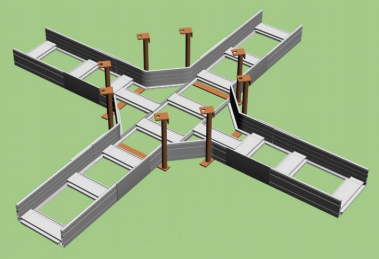

(3) Horizontal Cross cable tray: first connect the horizontal cross cable tray combination, To support the bend cable tray with support support at every exit, and the bracket is as close to the elbow as possible, and then fix the horizontal bend cable tray to the bracket with a fixed pressure plate.As shown in Figure 5.2.6-6,5.2.6-7.
Cable tray ladder cable tray
Figure 5.2.6-6 Figure 5.2.6-7

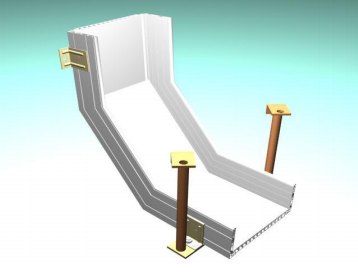

(4) Vertical bend cable tray: connect the vertical bend cable tray combination first, hold the bend cable tray with the bracket or unistrut or strut channel or steel channel at the horizontal support place, and fix the horizontal bend cable tray on the bracket with the fixed pressure plate.Attach a fixed pressure plate to the swallow-tail groove outside the tray at the vertical support position, and then attach it to the wall, as shown in Figure 5.2.6-8.
Bend cable tray
Figure 5.2.6-8

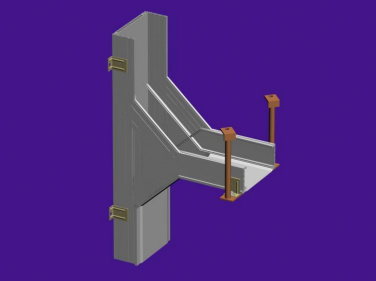

(2) Vertical Tee cable tray or Cross cable tray: first connect the vertical tee cross combination, hold the bending cable tray at the horizontal support, and fix the horizontal bend cable tray on the bracket or strut channel or unistrut with the fixed pressure plate.Attach a fixed pressure plate to the swallow-tail groove outside the tray at the vertical support position, and then attach it to the wall, as shown in Figure 5.2.6-9.
Figure 5.2.6-9
