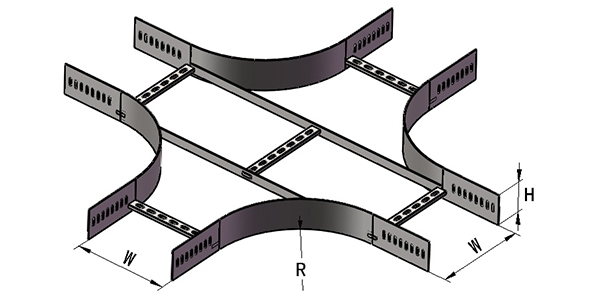

HL1- C Hesheng Metal Four-Way Cross for HL1
Hesheng Cable Ladder
Hesheng Cable Ladder is an economical wire management system designed to support and protect electrical wires and cables.Cable Ladder formed side rails are welded to 15⁄8 in. wide rungs to provide maximum rigidity and strength. Rung design includes exclusive cable tie slots on 1 in. centers.
Ventilated
A fabricated structure comprised of integral or separate longitudinal rails and a bottom with sufficient space for the air in is to support cables in the usage of 75% or less of the plane area of the surface.
The maximum interval between cable support surfaces do not exceed 102 mm (4 in.) in the direction of paralleling to the tray side rails (rung to rung).
Solid trough
Solid sheet welded to steel side rails below rungs. This design offers added cable protection.
H.S.Cable ladder systems holds more great advantages than other wiring methods. It can make it possible to save in the specification or quantity of raceways required ,reducing both material and labor costs as well thereby.
Cable Ladder permits much greater spacing between support hangers than for most other systems,providing savings in support costs and labor installation,
Standard finish of H.S. Perforated Cable Tray as below,customize available.And in varying width and load depth for many applications including primary service entrance, main power feeders, branch wiring, instrument and communications cable..,
· H--- Hot Dip Galvanized.
· G--- Pre-galvanized steel .
· S4-- Stainless Steel SS304.
· S6-- Stainless Steel SS316.
· P--- Powder Coated.
· A--- Aluminium.
· FRP-Fiberglass Reinforced Plastics/ GRP.
|
Model No. |
HL |
|
Side Rail Height |
25mm - 300mm or According to Requirements |
|
Thickness |
0.8mm-3mm According to Requirements |
|
Surface Finished |
Pre-Gal,Electro-Gal,HDG, Power Coated,Paint |
|
MOQ |
for Standard Size, Available for All Quantity |
|
Lead Time |
10-20 Days |
|
Sample |
Free of Charge |
|
Specification |
200*100mm |
|
Origin |
China |
|
Production Capacity |
500 Tonnes Per Month |
|
Width |
50mm - 1200mm |
|
Length |
2m - 6m or According to Requirements |
|
Materials |
Carbon Steel, Gi, HDG,Stainless Steel |
|
Max.Working Load |
100-400kgs, According to Size |
|
Supply Ability |
500 Tonnes Per Month |
|
Business Type |
Manufacturing and Trading in One |
|
Transport Package |
According to Requirements |
|
Trademark |
Hesheng |
|
HS Code |
7308900000 |
Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied for the Aluminium Processing Plant , Steel Plant , R&D and Production Base of TCM Thermal Power Plant, Data Center ,Seaside Engineering, Oil & Gas Downstream, Waste Incineration, Power Plant.
Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
