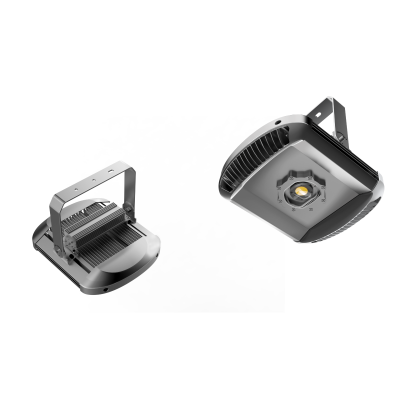

Tunnel Flood Light
Short Description:
Advantages
・Various light distribution by high boron glass lens :
suitable for streetlight, tunnel and regular floodlighting;
・Built-in Inventronics driver, top quality (external driver
model is available too);
・Compact housing structure with multi-phase changing
heatsink, IP65 standard;
・Smart control system compatiable;
Features
・Various light distribution by high boron glass lens :
suitable for streetlight, tunnel and regular floodlighting;
・Built-in Inventronics driver, top quality (external driver
model is available too);
・Compact housing structure with multi-phase changing
heatsink, IP65 standard;
・Smart control system compatiable;
Light Source
K-COB is a unique LED packaging pattern –
by using exclusive laser ceramic to replace
traditional silicone and phosphor,
this brand new generation LED light source brings
better reliability and extremly low lumen decay
Photoelectric Parameter
| Item No. | Power consumption | CCT | CRI | Luminous flux | Luminous efficacy |
| TL100 | 100W | 2200~6500K | 70~85ra | 13000lm | 110~150lm/w |
| TL200 | 200W | 2200~6500K | 70~85ra | 26000lm | 110~150lm/w |
| TL250 | 250W | 2200~6500K | 70~85ra | 32500lm | 110~150lm/w |
Optical
・Distribution : Wide
・Beam angle (half intensity) :
90°, 120° (Flood lighting)
150°x70°x20°, 150°x70°x15° (Road lighting),
150°x70°( Tunnel lighting)
・Lumen maintenance (L70) : 50,000 hours at 25℃
Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
