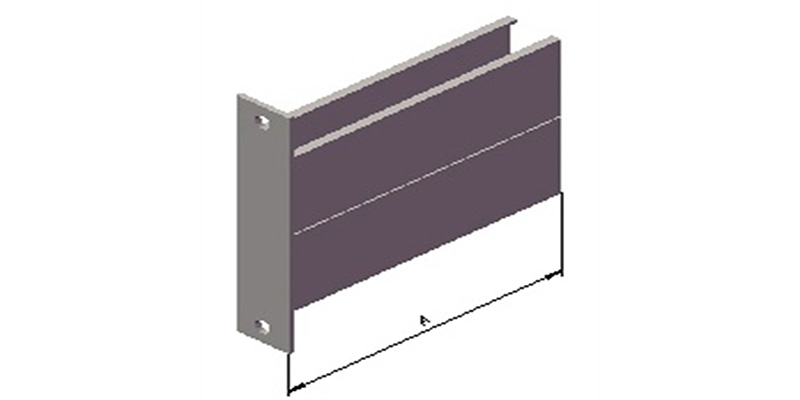

Strengthening Bracket STNB1

Short Description:

Hesheng also offers a wide range of components and fittings of cable trays. The Strengthening slotted or plain or back to back Bracket STNB1 is one of the fittings, which is attached to a wall and used to support or hold up cable or electric wire supporting system.

Trays can be suspended either in the ceiling, in a raised floor, or mounted along walls with optional kits or brackets.Strut channel is manufactured from stainless steel for use where rusting might become a problem (e.g., outdoors, facilities with corrosive materials), from aluminium alloy when weight is an issue or from fiberglass for very corrosive environments.

Several variations are available with different hole patterns for mounting to walls and supports. Solid channel has no holes predrilled, and must either be drilled on site or mounted in another fashion. Punched channel has round holes, large enough for 5/8 inch threaded steel rod or bolts, punched in the top of the channel at regular 1 7/8 inch centers. Half-slot channel has short, rounded end rectangular slots punched out on 2 inch centers. Slot channel has longer slots on 4 inch centers.

H .S. Strut Channel is the original metal framing system featuring a unique weldless connection. The H .S. Channel Strut or C channel or U type channel system eliminates welding and drilling, and is easily adjustable and reusable for infinite configurations.


Product Detail

Standard

Product Tags

Product description

Strengthening Bracket STNB1
Hesheng cable tray system is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder.

The continuous Hesheng cable supporting system allows for constant cable support. Our products consist of Wire Mesh Cable Tray, Cable Tray with holes , solid pan bottom cable tray, Cable Trunking, Cable Ladder, Wireway, wiremesh cable tray, Strut Channel, Conduit and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
Moreover,H.S. also develops various accessories for our range which are used for support & installation of cables over the cable trays.
H.S.offers a wide range of components of perforated cable trays. Strengthening Bracket STNB1 is one of the fittings . These fittings are generally fabricated in mild steel, which is attached to a wall and used to support or hold up cable supporting system.

Hesheng also offers a wide range of components and fittings of cable trays. The Strengthening slotted or plain or back to back Bracket STNB1 is one of the fittings, which is attached to a wall and used to support or hold up cable or electric wire supporting system.Trays can be suspended either in the ceiling, in a raised floor, or mounted along walls with optional kits or brackets.Strut channel is manufactured from stainless steel for use where rusting might become a problem (e.g., outdoors, facilities with corrosive materials), from aluminium alloy when weight is an issue or from fiberglass for very corrosive environments.

Standard finish of H.S. Strut Channel as below, customize available:
•G — Pre-galvanized steel
•H — Hot Dip Galvanized
•S4 — Stainless Steel SS304
•S6 — Stainless Steel SS316
•P — Powder Coated
•M— Mill/Plain Steel ,
•A — Aluminium
•FRP - Fiberglass Reinforced Plastics I GRP

H.S. Strut Channel Advantages:
•100% Adjustable
•100% Reusable
•No Welding
•No Drilling
•No Special Tools Hesheng Strut Channel

Basic Information

hm1

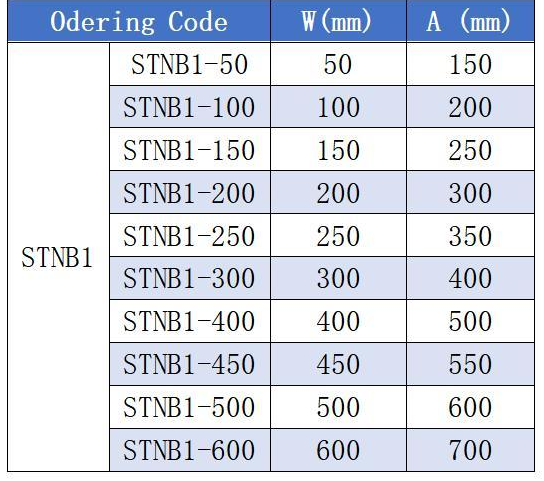

Product Specifications

ht2
specification

Strut Channel and Fittings

wb

Production Process

Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant

hc

Packing and Delivery for Cable tray

Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements

hc

Installation case on site for Hesheng cable support system

hc

Product application program

application

Actual Test on Site

test

Certificate

certificate

  • Previous:
  • Next:

  • Standard finish of H.S.Perforated Cable Tray as below, customize available:

    Suffix Finish Suffix Finish Suffix Finish
    G Pre -galvanized/PG/GI P Powder coated Z Zinc plated
    H Hot dip galvanized/HDG A Alumnium E Electrolytic polishing
    S4 Stainless steel SS04 FRP Fiber reinforced plstic/GRP M Mill/Plain steel
    S6 Stainless steel SS06 F Fire rated
