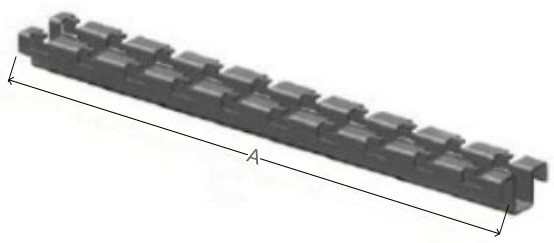

HM-SB Hesheng Metal Straight Bracket

HM-SB Straight Bracket
Hesheng wire mesh cable tray system has been developed with optimal function in mind and with emphasis on simplicity and accessibility for the purposes of thorough cleaning and heat dissipation.
H.S.Wire Mesh Cable supporting systems HM1&HM2 are permitted in a numerous of indoor and outdoor applications. Hesheng Group provides a variety of cable supports: Metal Wire Mesh Cable Tray, Embossed Perforated Cable Tray, Mill Galvanized Steel Cable Trunking, FRP Cable Ladder, PVC Wire way, Stainless Steel Strut Channel and accessories. Our products can be widely applied in civil Engineering, Civil & Steel Constrction ,energy, power, Chemistry ,Pharmacy plant.... We holds the certifications of ISO 9001 quality management system , UL Certificate (U.S.A.), and CE Certificate (E.U.)
Cable tray fittings are used to change the size or direction of the channel tray. The most important decision to be made in fitting design concerns radius. The radius of the bend, whether horizontal or vertical, can be zero (non-radius), 12 in., 24 in. or greater on a custom basis. The selection requires a compromise with the considerations being available space, minimum bending radius of cables, ease of cable pulling and cost. The typical radius is 24 inches. Fittings are also available for 30°, 45°, 60° and 90° angles. When a standard angle will not work, adjustable elbows can be used. It may be necessary to add supports to the tray at these points.

Fittings type
• Horizontal bends (90°, 60°, 45° and 30°)
• Horizontal tees and crosses
• Vertical bends (90°, 60°, 45° and 30°)

Making transitions from horizontal to vertical cable tray runs has never been easier or more efficient. The latest evolution in cable tray fittings, the fittings assembly was developed specifically for use in confined areas. It allows installers to transition from horizontal to vertical surfaces in less time, using significantly less space.
• Enables installation close to walls and other surfaces, eliminating need for distance
• Provides enhanced cable protection in confined spaces
• Secures cables within fitting for clean, organized cable runs
