HPHT Hesheng Polymer Alloy Plastic Horizontal Tee(PVC)
Overview of PHQ- high strength whisker modified plastic cable supporting system
★ Whisker calcium carbonate is a micro/nano short fiber grown from a single crystal of high purity. Its mechanical strength is equal to the strength generated by the adjacent interatomic force. The highly oriented structure of whisker not only makes it high strength, high modulus and high elongation, but also have properties of electricity, light, magnetic, dielectric, conductive and super-electric . The strength of whiskers is much higher than that of other staple fibers. The growth whisker mainly used for composite materials can be divided into organic whisker and inorganic whisker. Inorganic whisker includes calcium sulfate and calcium carbonate, which are applied in the field of polymer composite materials.
★ At the beginning of 2008, the company introduced German technology to the research and development of high strength whisker modified plastic cable tray , the product has a number of independent intellectual property rights . PHQ high-strength whisker modified plastic cable tray is mainly made in PVC resin, ABS, whisker material of uv resistance and other many kinds of engineering plastic modifier by the processing technology of hot mixing and pressing .its structure which is of the double wall hollowed out and of reinforced bars along, is composed by left and right side of the board, longitudinal plate and cover plate . The convex and concave grooves on the side and bottom panel inserted together is strength and beautiful, The connection between the cable trays is easy to install by the structure of convex and concave grooves on the side and bottom panel inserted together with the connection straps
★ Each kind of cable supporting system is comprised of straight through parts, bends components , strut channel, connectors and fittings. Horizontal Tee is one of the bend components usually used for the three - way horizontal bend.
|
Ordering Code |

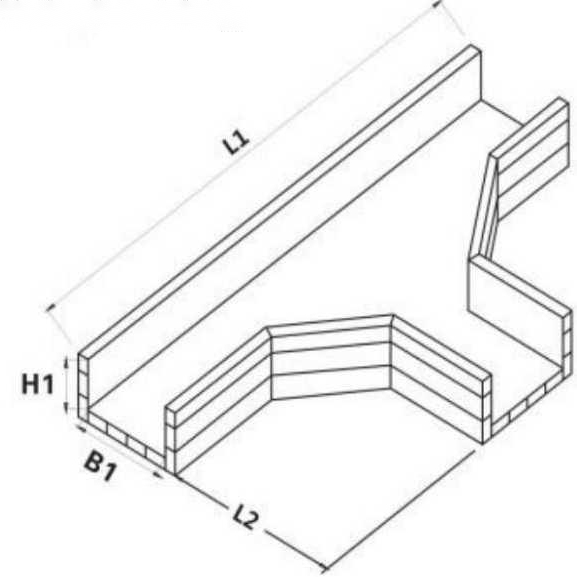

Specification | Center Line | ||
| B1 | H1 | L1 | L2 | |
| PHQ-C-3A
PHQ-K-3A PHQ-T-3A |
50 | 50 | 470 | 400 |
| 100 | 50/100 | 690 | ||
| 200 | 100
150 200 |
790 | ||
| 300 | 1000 | |||
| 400 | 1130 | |||
| 500 | 1330 | |||
| 600 | 1430 | |||
| 800 | 1630 | |||
| 1000 | 1830 | |||
| 1200 | 2030 | |||
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Q: Are you a factory or a trading company?
A:We not only have our own factories but also have shares in some other enterprises.
Q:What services you can offer?
A:We are manufacturer with a range of electrical and network cable tray systems , you can enjoy the one-stop shopping service from our company.Quality and cost driving manufacturer with ISO9001,CE,NEMA,UL,SGS certificated to provide customers reliable products with most competitive price.
Q:How can you make commitment passing the test?
A:We have professional lab to do below test:
a.safe loading test
b.galvanized thickness test
c.salt spray test
d.electrical continuity
Q:What is your products advantages:
A:
a.Reduce installation costs and time
b.Easy for changing, adding and moving
c.Bright surface means good material and quality
d.Our electrical and network cabling equipment have the same quality as the international famous brand.
Q: Can you provide samples?
A: Yes ,you can get the free samples.
Q: What is your payment terms?
A: 30% T/T deposit,balance will be paid before shipment or against the copy of B/L;
Q: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 15-25days.
Q: Why do choose us?
A:
Cable Tray Official Certificates Worldwide
We has been certified by ISO9001 in China, UL in U.S.A and CE in E.U. with professional design and extremely well production techniques. These certifications are our first step into the International market.
Cable Tray Production Flow Strictly Managed
Our Factory has various types of CNC machines, high quality modeling machines, processing equipment, which provides the most powerful guarantee for high quality products.
Cable Tray Quality Traceability System Maintained
In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Our factory develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment.
Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
