HW-CC Hesheng Metal Stainless Steel Connect Coupler for HW

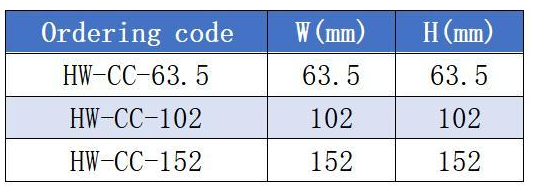

HW-CC Connector Coupler
Hesheng wire way is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder, used for cable and wire junction, distribution and termination
Hesheng wire way allows for holding down or cable attachment, and heat dissipation.
The continuous allows Hesheng wire way provides constant cable support. Our products are comprised of Wire Mesh Cable Tray, Embossed Cable Tray with solid bottom or perforated bottom , solid pan bottom cable tray, Cable Trunking, Cable Ladder, Wireway, Cable Channel and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.
All directional fittings are completed with factory built modules that maintain a wide curved radius sweep minimizing any non-compliant bend radius for all types of cables.
*produced by galvanized steel with ANSI 61 grey acrylic electro coated finish inside and outside
*Raceways are phosphate washed before adopt of finish coat for extra surface bonding
*Heavy duty splices delete the need for gates, and provides a solid connection between sections
*Hinged and screwed cover allow for easy entrance and lay-in of cables
*Available with or without knockouts on top and bottom sides
*All directional fittings are completed with factory built modules that maintain a wide radius sweep maintaining compliant bend radii for all common cable types and sizes
*Product meets NEMA Type 1 standards
Our indoor and outdoor wireways are commercial grade and built to your specifications. With hinged doors, lockable doors, screw on covers, you name it.
·Fitings
·Clamps
·Supports
·Hangers
Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied in the
Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
