HW-C Hesheng Metal Fire Retardant Four Way Cross for HW

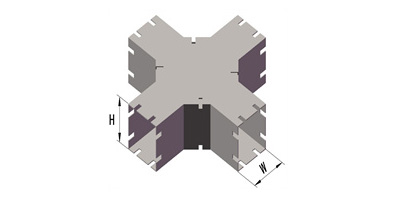

HW- C Cross
Hesheng wire way is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder, used for cable and wire junction, distribution and termination. A wireway is designed to prevent electrical wiring from damaged and corroded. Wireways can be used for many applications and can be laid in faster and at less expense than other cable trays. It is also applied to carry electrical feeders, branch circuits, and other groups of conductors. Most sections and fittings are completely open on one side so wires and cables can be wired along an entire wireway running. No most designs of concerning pulling through of wires or cables are needed .
Hesheng wire way allows for holding down or cable attachment, and heat dissipation.
The continuous allows Hesheng wire way provides constant cable support. Our products consist of Wire Mesh Cable Tray, Cable Tray with holes , solid pan bottom cable tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.
Bend cable tray
Fittings type
• Horizontal bends (90°, 60°, 45° and 30°)
• Horizontal tees and crosses
• Vertical bends (90°, 60°, 45° and 30°)
• Horizontal bends (90°, 60°, 45° and 30°)
• Horizontal tees and crosses
• Vertical bends (90°, 60°, 45° and 30°)
• Adjustable dividers
• Tops and sides can completely open
• Flat cover and 20-degree sloped cover models available
• Perforated fittings and straight sections
• Elbows contain three cover options: front, inside and outside
• Connecting hardware is included with each model
• Quarter-turn latches·Corrosion Resistance
Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied in the
Standard finish of H.S.Perforated Cable Tray as below, customize available:
Suffix | Finish | Suffix | Finish | Suffix | Finish |
G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
S6 | Stainless steel SS06 | F | Fire rated |
