Polymer Alloy plastic (PVC )Vertical Bottom Straight Tee with the chemical structure of whisker modified
Overview of PHQ- high strength whisker modified plastic cable tray
Polymer Whisker Cable Tray:
With PVC resin, ABS, calcium carbonate whiskers (short fiber) and other raw materials for mixing (hot mixed or cold mixed)extrusion molding.
Polymer Whisker cable tray is an innovated type cable tray with acid resistance, alkali resistance, salt resistance and complete corrosion resistance.
The structure of the polymer whisker cable tray is double-walls, with reinforcing rib hollow design in the middle, that greatly improve the load capacity and reduce the weight of the cable tray itself. The polymer alloy cable tray is composed of the left and right plate, longitudinal bottom plate and cover plate.
Side rails and bottom plate are interlocked by concave groove and convex tongue (interlock by groove and tongue or interlock by male and female or connection with groove and tongue), which is solid and beautiful.
Side rails and bottom plate are interlocked by groove and tongue buckle type
The connection between the cable trays adopts the connecting plate, which is convenient and beautiful to install.
Especially suitable for places with corrosion or special humidity or non-metallic requirements , such as lithium battery factory,Coastal cities or seaside places,Corrosion sites, particularly wet places(Outdoor roof, basement, etc).
1.High strength
2.Corrosion resistance(acid resistance, alkali resistance, salt resistance)
3. Flame-retardant(level for Hard to burn:B1 grade,hard combustion performance) and aging resistance
4.High-temperature resistance and creep resistance
5.No conductive(No metal (No metal-type additives), no grounding
6.No combustion drops, oxygen index 44.7%
7.Low smoke and low halogen
8.Non-toxic, odorless
9.Easy to install(No bolts connections are required)
10. Serve long life

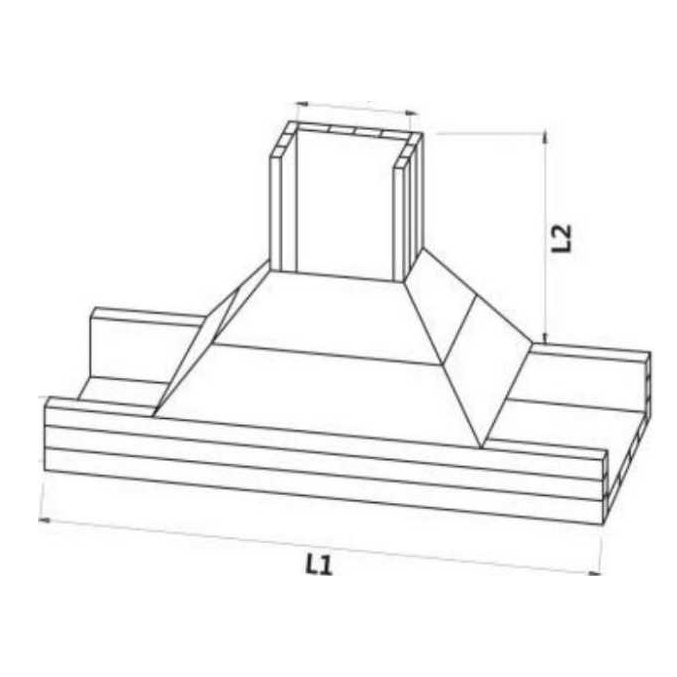

Ordering Code | Specification | Center Line | ||
B1 | H1 | L1 | L2 | |
PHQ-C-3C
PHQ-K-3C PHQ-T-3C |
50 | 50 | 870 | 400 |
100 | 50/100 | |||
200 | 100
150 200 |
1030 | ||
300 | 1130 | |||
400 | 1230 | |||
500 | 1330 | 500 | ||
600 | 1430 | |||
800 | 1630 | |||
1000 | 1830 | |||
1200 | 2030 |
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Q: Are you a factory or a trading company?
A:We not only have our own factories but also have shares in some other enterprises.
Q:What services you can offer?
A:We are manufacturer with a range of electrical and network cable tray systems , you can enjoy the one-stop shopping service from our company.Quality and cost driving manufacturer with ISO9001,CE,NEMA,UL,SGS certificated to provide customers reliable products with most competitive price.
Q:How can you make commitment passing the test?
A:We have professional lab to do below test:
a.safe loading test
b.galvanized thickness test
c.salt spray test
d.electrical continuity
Q:What is your products advantages:
A:
a.Reduce installation costs and time
b.Easy for changing, adding and moving
c.Bright surface means good material and quality
d.Our electrical and network cabling equipment have the same quality as the international famous brand.
Q: Can you provide samples?
A: Yes ,you can get the free samples.
Q: What is your payment terms?
A: 30% T/T deposit,balance will be paid before shipment or against the copy of B/L;
Q: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 15-25days.
Q: Why do choose us?
A:
Cable Tray Official Certificates Worldwide
We has been certified by ISO9001 in China, UL in U.S.A and CE in E.U. with professional design and extremely well production techniques. These certifications are our first step into the International market.
Cable Tray Production Flow Strictly Managed
Our Factory has various types of CNC machines, high quality modeling machines, processing equipment, which provides the most powerful guarantee for high quality products.
Cable Tray Quality Traceability System Maintained
In order to serve high quality products, it is essential to test the manufactured products before delivery. In this session, Our factory develops the most stringent testing procedures, and trains factory inspectors besides its already high level product inspection equipment.
Standard finish of H.S.Perforated Cable Tray as below, customize available:
Suffix | Finish | Suffix | Finish | Suffix | Finish |
G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
S6 | Stainless steel SS06 | F | Fire rated |
