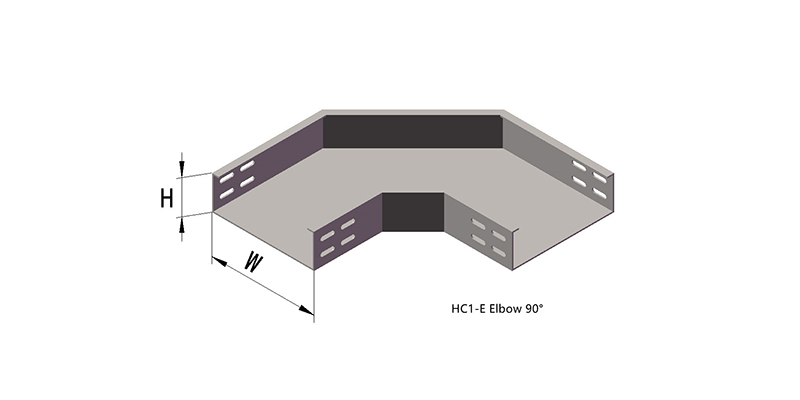

HC1-E Hesheng Perforated Elbow 90°

Short Description:

H.S.offer a wide range of compents of perforated cable trays. 90°Elbow is one of the components used as the connector in the place of 90°corner.

These perforated cable trays are offered in different materials , generally fabricated in mild steel.


Product Detail

Standard

Product Tags

Product description

Elbow 90°for Perforated Cable Tray HC1
Hesheng solid and perforated bottom cable tray system is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder.
perforated cable tray allows for hold down or cable attachment, and heat dissipation.
The continuous perforated cable tray allows for constant cable support. Our products consist of Wire Mesh Cable Tray, Cable Tray with holes , solid pan bottom cable tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.
Moreover,H.S. also develop various accessories for our range which are used for support & installation of cables over the cable trays.
H.S.offer a wide range of compents of perforated cable trays. 90°Elbow is one of the components used as the connector in the place of 90°corner.
These perforated cable trays are offered in different materials , generally fabricated in mild steel.

The accessories are mentioned below:

·Fitings
·Clamps
·Supports

Advantages:
·Corrosion Resistance
·Easy-installing
·Durability

product

Product Specifications

Oerdering Code

W(mm)

H(mm)

HC1-E3

HC1-E3-50-50

50

50

HC1-E3-100-50

100

50

HC1-E3-150-50

150

50

HC1-E3-200-50

200

50

HC1-E3-250-50

250

50

HC1-E3-300-50

300

50

HC1-E3-400-50

400

50

HC1-E3-450-50

450

50

HC1-E3-500-50

500

50

HC1-E3-600-50

600

50

Installation Guide

spec

Installation case on site for perforated cable tray HC1

certificate

Production Process

Production line for Metal Cable Tray Here is processing line of cable tray and welcome to visit our plant

hc

Packing and Delivery for Cable tray

Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements

hc

Installation case on site for Hesheng cable support system

Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied in the

hc

Product application program

application

Actual Test on Site

test

Certificate

certificate

  • Previous:
  • Next:

  • Standard finish of H.S.Perforated Cable Tray as below, customize available:

    Suffix Finish Suffix Finish Suffix Finish
    G Pre -galvanized/PG/GI P Powder coated Z Zinc plated
    H Hot dip galvanized/HDG A Alumnium E Electrolytic polishing
    S4 Stainless steel SS04 FRP Fiber reinforced plstic/GRP M Mill/Plain steel
    S6 Stainless steel SS06 F Fire rated
