HT1-C Hesheng Metal Four-Way Cross for Cable Trunking

Short Description:

Cable Trunking of H.S.is an circuited wiring system designed to support and protect electrical wires and cables. HT1- C Cross is one of the Hesheng cable trunking components , used as the connector in the place of the 4-way branch junction.

Cable Trunking superiorities

· economical and easy installation .

· enclosed in trunking, it’s difficult for cable insulation to be destroyed and corroded.

· Alternations are easy acceptable.

· Trunking systems has a long service life.

Disadvantages:

· Expensive compare to other wiring systems.

· Care and good workmanship are needed to ensure a successful installation.


Product Detail

Standard

Product Tags

Product description

Hesheng Cable Trunking HT1-C Cross

Hesheng CableTrunking HT1 is ideal way for instrumentation cable and electrical cable running in industrial or commercial cable management applications, helping reduce the demands for conduit or ladder, used for cable and wire junction, distribution and termination. HT1- C Cross is one of the Hesheng cable trunking components , used as the connector in the place of the 4-way branch junction.

Hesheng Cable Trunking HT1 allows for holding down or cable attachment, and heat dissipation.

The constant Hesheng Cable Trunking HT1 offers continuous cable support. Our products are completed with Wire Mesh Cable Tray, Embossed Perforated Cable Tray , solid pan bottom cable tray, Cable Trunking with Mark , NEMA Cable Ladder Tray , Wire way, Strut Channel and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)

Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.

Standard finish of H.S. Cable Trunking as below,customize available:

·G---- Pre-galvanized steel

· H---. Hot Dip Galvanized

·S4 -- Stainless Steel SS304

· S6-- Stainless Steel SS316

· A---. Aluminium

·FRP- Fiberglass Reinforced Plastics / GRP H,S

Basic Information

hm1

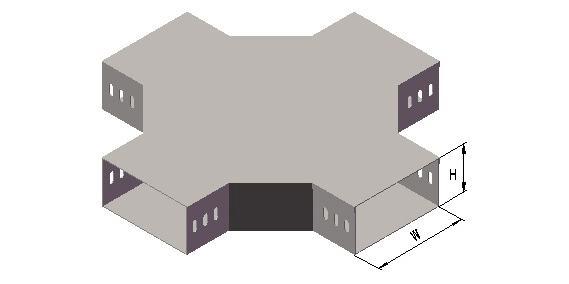

Product Specifications

product

Ordering Code

W(mm)

H(mm)

HT1-C

HT1-C-100-100

100

100

HT1-C-150-100

150

100

HT1-C-200-100

200

100

HT1-C-300-100

300

100

HT1-C-400-100

400

100

HT1-C-450-100

450

100

HT1-C-500-100

500

100

HT1-C-600-100

600

100

Components and Brackets of Cable Trunking HT1

ht

Schematic Diagram of the Cable Trunking Space Layout

ht

Production Process

Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant

hc

Installation Guide for HT1- T Tee

install

Packing and Delivery for Cable tray

Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements

hc

Installation case on site for Hesheng cable support system

hc

Product application program

application

Actual Test on Site

test

Certificate

certificate

  • Previous:
  • Next:

  • Standard finish of H.S.Perforated Cable Tray as below, customize available:

    Suffix Finish Suffix Finish Suffix Finish
    G Pre -galvanized/PG/GI P Powder coated Z Zinc plated
    H Hot dip galvanized/HDG A Alumnium E Electrolytic polishing
    S4 Stainless steel SS04 FRP Fiber reinforced plstic/GRP M Mill/Plain steel
    S6 Stainless steel SS06 F Fire rated
