HT1-T Hesheng Metal Galvanized -Coated Tee-Cross for Hesheng Cable Trunking
Hesheng Cable Trunking HT1-T Tee

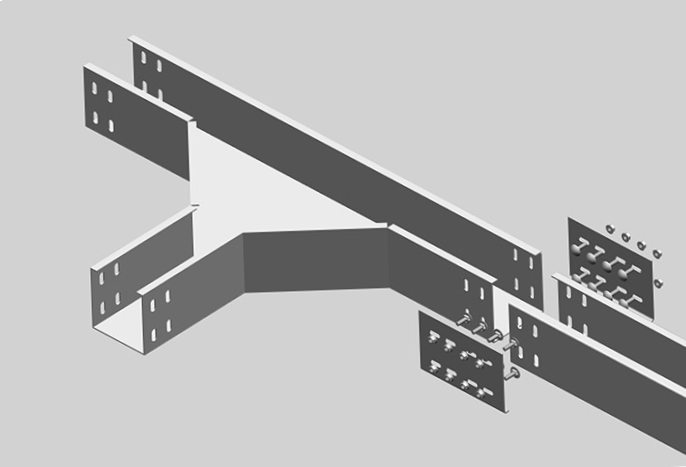

Hesheng Cable Trunking HT1 is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder, used for cable and wire junction, distribution and termination. HT1- T Tee is one of the Hesheng cable trunking components , used as the connector in the place of the 3-way branch corner.Trunking refers to an enclosure that protects cables. In most cases, it is rectangular or square in shape and has a lid that can be removed. Using trunking systems together with conduit systems offers more convenience and flexibility. While trunking is the framework of each installation, conduits cover the cables outside the trunking system all the way to the outlet boxes.The good thing with trunking is that it allows the installation of an extension. You only need to drill a hole on the preferred side of the trunking and attach the new wiring through the conduit to the installed trunking system.
There is more than one option to store and keep cables organized during an installation. The containment systems you will select will be influenced by a variety of factors, including the type of building and wiring system. Moreover, the budget and other practical considerations within the building in question will also play a huge role.
Trunking refers to an enclosure that protects cables. In most cases, it is rectangular or square in shape and has a lid that can be removed. Using trunking systems together with conduit systems offers more convenience and flexibility. While trunking is the framework of each installation, conduits cover the cables outside the trunking system all the way to the outlet boxes.
The good thing with trunking is that it allows the installation of an extension. You only need to drill a hole on the preferred side of the trunking and attach the new wiring through the conduit to the installed trunking system.
Hesheng CableTrunking HT1 allows for holding down or cable attachment, and heat dissipation.
The continuous Hesheng CableTrunking HT1 provides constant cable support. Our products consist of Wire Mesh Cable Tray, Cable Tray with holes , solid pan bottom cable tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.
Standard finish of H.S. Cable Trunking as below,customize available:
·G---- Pre-galvanized steel
· H---. Hot Dip Galvanized
·S4 -- Stainless Steel SS304
· S6-- Stainless Steel SS316
· A---. Aluminium
·FRP- Fiberglass Reinforced Plastics / GRP H,S
Cable Trunking Advantages:
· Cheap and easy installation method.
· The cables are enclosed in trunking, there is no risk of cable insulation to be damaged.
· Cables are safe against dust and humidity.
· Alternations are possible.
· Long Service Life.
Disadvantages:
· Expensive compare to other wiring systems.
· Care and good workmanship are needed to ensure a successful installation.

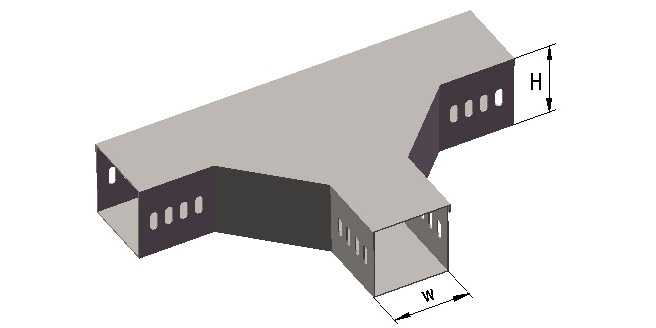

Ordering Code |
W(mm) |
H(mm) |
|
HT1-T |
HT1-T-100-100 |
100 |
100 |
HT1-T-150-100 |
150 |
100 |
|
HT1-T-200-100 |
200 |
100 |
|
HT1-T-300-100 |
300 |
100 |
|
HT1-T-400-100 |
400 |
100 |
|
HT1-T-450-100 |
450 |
100 |
|
HT1-T-500-100 |
500 |
100 |
|
HT1-T-600-100 |
600 |
100 |
Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Standard finish of H.S.Perforated Cable Tray as below, customize available:
Suffix | Finish | Suffix | Finish | Suffix | Finish |
G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
S6 | Stainless steel SS06 | F | Fire rated |
