HC1-C Hesheng Perforated Covers
Hesheng solid and perforated bottom cable tray system is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder.
HS.offers a wide range of components of perforated cable trays. Covers are attachment components provided to match the main products on the base of the clients’ demands. Tray covers are available for all widths of tray. They should be installed where falling objects may damage cables or where vertical tray run is accessible by pedestrian or vehicular traffic.
These covers provide maximum mechanical protection for cables with limited heat build up.Flanged covers have 1⁄2 in. Flange.
• Fitting covers are available to complete your cable channel layout
• All fitting covers are flanged
These solid pan or perforated bottom cable trays with covers are offered in different types generally fabricated in mild steel, Pre-galvanized, Hot-dip Galvanized,Stainless Steel,Aluminium,Fiber Reinforced Plastic, Plain Steel with powder coated,Polymer Alloy etc.
|

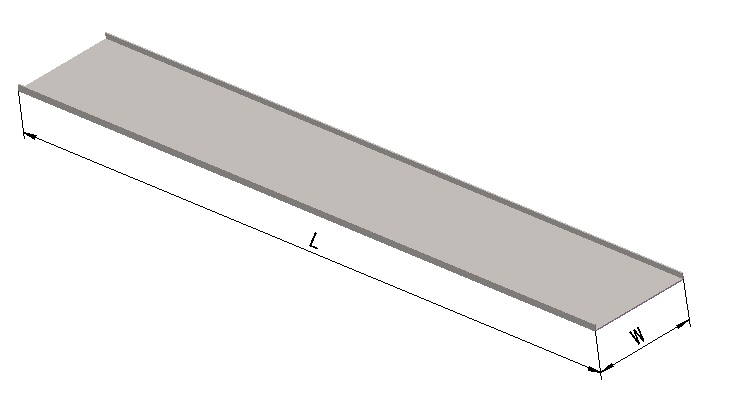

Odering Code |
W（mm) |
L(mm) |
|
|
HC-FSC |
HC-FSC-50 |
50 |
3000 |
|
HC-FSC-100 |
100 |
3000 |
|
|
HC-FSC-150 |
150 |
3000 |
|
|
HC-FSC-200 |
200 |
3000 |
|
|
HC-FSC-250 |
250 |
3000 |
|
|
HC-FSC-300 |
300 |
3000 |
|
|
HC-FSC-400 |
400 |
3000 |
|
|
HC-FSC-450 |
450 |
3000 |
|
|
HC-FSC-500 |
500 |
3000 |
|
|
HC-FSC-600 |
600 |
3000 |
|
|
Other modes and sizes are available. |
|||
Production line for Metal Cable Tray Here is processing line of cable tray and welcome to visit our plant
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied in the
Standard finish of H.S.Perforated Cable Tray as below, customize available:
| Suffix | Finish | Suffix | Finish | Suffix | Finish |
| G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
| H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
| S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
| S6 | Stainless steel SS06 | F | Fire rated |
