HC1-RR Hesheng Perforated Right Hand Reducer
Hesheng solid and perforated bottom cable tray system is ideal solution for instrumentation cable and electrical cable runs in industrial or commercial cable management applications, helping eliminate the need for conduit or ladder.
Cable tray fittings are used to change the size or direction of the channel tray. The most important decision to be made in fitting design concerns radius. The radius of the bend, whether horizontal or vertical, can be zero (non-radius), 12 in., 24 in. or greater on a custom basis. The selection requires a compromise with the considerations being available space, minimum bending radius of cables, ease of cable pulling and cost. The typical radius is 24 inches. Fittings are also available for 30°, 45°, 60° and 90° angles. When a standard angle will not work, adjustable elbows can be used. It may be necessary to add supports to the tray at these points.
Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.
Moreover,H.S. also develop various accessories for our range which are used for support & installation of cables over the cable trays.

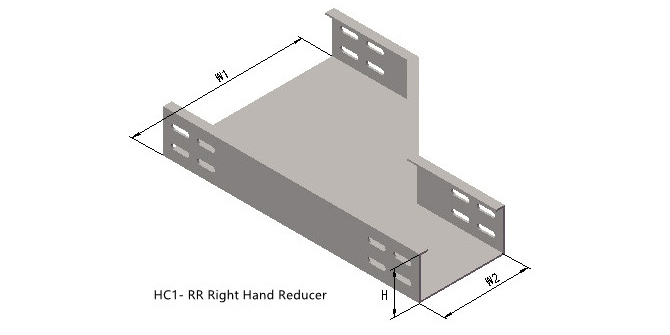

H.S.offers a wide range of components of perforated cable trays.Right Hand Reducer is one of the components,used as reducer connector of right side.
These perforated cable trays are offered in different materials , generally fabricated in mild steel, Pre-galvanized, Hot-dip Galvanized,Stainless Steel,Aluminium,Fiber Reinforced Plastic, Plain Steel with powder coated.
The accessories are mentioned below:
·Fitings
·Clamps
·Supports
Advantages:
·Corrosion Resistance
·Easy-installing
·Durability
Odering Code |
W1(mm) |
W2(mm) |
H(mm) |
|
HC1-RR |
HC1-RR-100-50 |
100 |
50 |
50 |
HC1-RR-150-50 |
150 |
50 |
50 |
|
HC1-RR-200-50 |
200 |
50 |
50 |
|
HC1-RR-150-100 |
150 |
100 |
50 |
|
HC1-RR-200-100 |
200 |
100 |
50 |
|
HC1-RR-250-100 |
250 |
100 |
50 |
|
HC1-RR-200-150 |
200 |
150 |
50 |
|
HC1-RR-300-150 |
300 |
150 |
50 |
Production line for Metal Cable Tray Here is processing line of cable tray and welcome to visit our plant
Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements
Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied in the
Standard finish of H.S.Perforated Cable Tray as below, customize available:
Suffix | Finish | Suffix | Finish | Suffix | Finish |
G | Pre -galvanized/PG/GI | P | Powder coated | Z | Zinc plated |
H | Hot dip galvanized/HDG | A | Alumnium | E | Electrolytic polishing |
S4 | Stainless steel SS04 | FRP | Fiber reinforced plstic/GRP | M | Mill/Plain steel |
S6 | Stainless steel SS06 | F | Fire rated |
