HW-T Hesheng Metal Anti-Dust Anti CrossionTee

Short Description:

Cable Management Wireway(Raceway) is processed to protect and house laying of control and power cables. Also called the Hesheng Wireway(Raceway), this cable supporting system is used for cable and wire junction, distribution and termination where complete enclosure is required.

HW- T Tee is one of the Hesheng wire way components , used as the connector in the place of the 3-way branch corner.

Application of H.S. Wireway:

·Houses runs of control and power cable

·Used for cable and wire junction, distribution and termination

Construction of H.S.Wireway:

·Wireway body and cover are fabricated from code gauge steel

·Wireway body has mounting holes on the back

·Wireway is available with or without knockouts on the top and bottom sides

·Wireway fittings have no knockouts, ends are available with or without knockouts

·Wireway has cover which are attached with formed hinges on one side


Product Detail

Standard

Product Tags

Product description

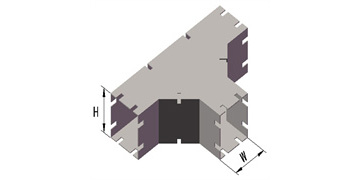

HW- T Tee
Hesheng Cable Management of Wireway(Raceway) is designed to protect and house runs of control and power cables. Also called the Hesheng Wireway(Raceway), this cable management system is used for cable and wire junction, distribution and termination where complete containment is required.
All directional fittings are completed with factory built modules that maintain a wide curved radius sweep minimizing any non-compliant bend radius for all types of cables.

Benefits
*Constructed from galvanized steel with ANSI 61 grey acrylic electro coated finish inside and outside
*Raceways are phosphate washed prior to application of finish coat for extra surface bonding
Cable trays are for cables. A group of wires surrounded but an overall jacket. Wireways are for wires, Individual insulated conductors such as THHN. Wireways can also used for cables, but normally for low voltage cables.
Our indoor and outdoor wireways are commercial grade and built to your specifications. With hinged doors, lockable doors, screw on covers, you name it.
Hesheng wire way allows for holding down or cable attachment, and heat dissipation.
The continuous allows Hesheng wire way provides constant cable support. Our products consist of Wire Mesh Cable Tray, Cable Tray with holes , solid pan bottom cable tray, Cable Trunking, Cable Ladder, Wireway, Strut Channel and accessories, which can be widely used in construction, energy, electricity and plant. We passed the ISO 9001 quality management system certification, UL Certificate (U.S.A.), and CE Certificate (E.U.)
Every straight piece of our perforated cable tray has an average length of 3000 mm, other length available against the requirements of the customers.

The accessories are mentioned below:
·Fitings
·Clamps
·Supports
Advantages:
·Corrosion Resistance
·Easy-installing
·Durability

Basic Information

hm1

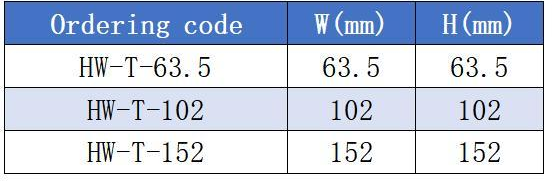

Product Specifications

product
specification

Components Of Metal Wire Way HW

hw

Schematic Diagram of the Wire Way Space Layout

hm1

Production Process

Production line for Metal Cable Tray Here is processing line of cable support system and welcome to visit our plant

hc

Packing and Delivery for Cable tray

Packing Method:
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for wire basket cable tray
4.Carton for accessories
5.As per requirements

hc

Installation case on site for Hesheng cable support system

Installation cases on site for cable tray with holes, metal cable ladder,metal cable trunking,wire mesh cable tray,wireway, cable channel,solid bottom cabletray, polymer alloy cable tray,which can be applied in the

hc

Product application program

application

Actual Test on Site

test

Certificate

certificate

  • Previous:
  • Next:

  • Standard finish of H.S.Perforated Cable Tray as below, customize available:

    Suffix Finish Suffix Finish Suffix Finish
    G Pre -galvanized/PG/GI P Powder coated Z Zinc plated
    H Hot dip galvanized/HDG A Alumnium E Electrolytic polishing
    S4 Stainless steel SS04 FRP Fiber reinforced plstic/GRP M Mill/Plain steel
    S6 Stainless steel SS06 F Fire rated
